    A100CB/T3778-99 stainless steel sounding injection head

    Sounding head
    Marine large caliber sounding pipe head, sounding head is successfully delivered:

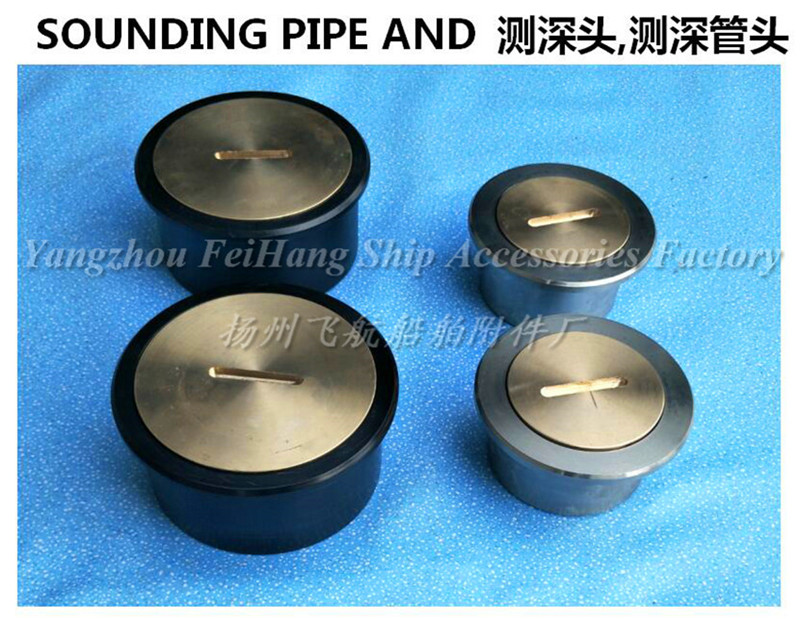

    Stainless steel sounding head A100 CB/T3778-99: material 316 stainless steel
    Depth injection head A150 CB/T3778-99: material carbon steel
    Marine sounding head, sounding head, sounding head, Sounding, head, CB/T3778-99
    A150, CB/T3778-99 steel, deck sounding head, sounding head, A150, CB/T3778-99, structural dimension:

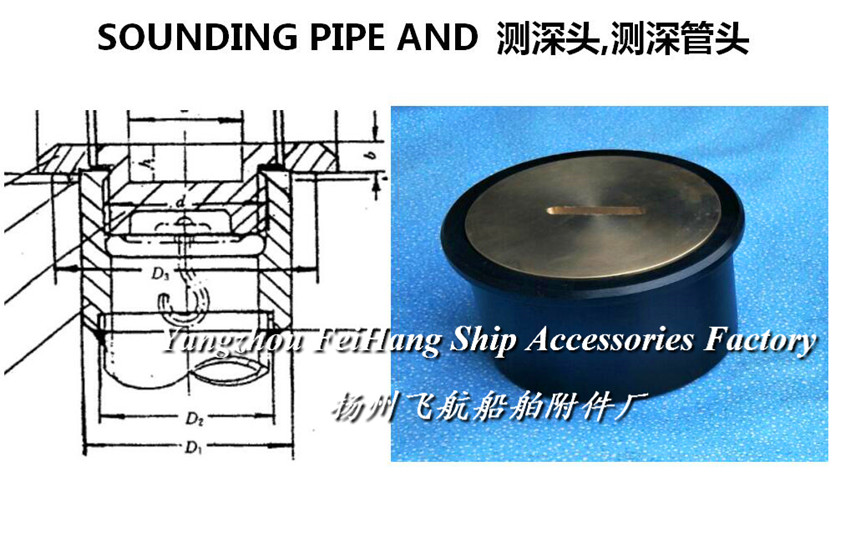

    A100CB/T3778-99 stainless steel sounding head --- stainless steel sounding pipe head, A100, CB/T3778-99, structural dimension:
    CB/T3778-99 bathymetry, injection head / depth head and injection head / deck fueling test method are as follows:
    The sounding head shall be sealed with 0.11Mpa, and the 6min shall not be kept leaking
    When the sounding head is directly installed in the tank, the weld joint of the sounding head and the deck shall be welded on both sides, and the A type injection head and B type sounding head of the injection head and the welding seat plate can be made into an integral body.
    Installation position of ship air duct, sounding pipe head and injection pipe head:
    The sounding head usually extends to the bottom of the cabin. The specification of the pipe head has strict requirements, while the sounding pipe head does not.
    The sounding pipe ends in terminal above the bulkhead deck or freeboard deck accessible, and equipped with a permanently attached effective metal closing device. According to industry standards, there are two types of measuring heads, namely, A type (steel deck sounding pipe head) and C type (raised sounding pipe head) installed flush with the deck.
