Marine JIS seawater filter JIS F 7121

    Buy cheap Marine JIS seawater filter JIS F 7121 from wholesalers

    Buy cheap Marine JIS seawater filter JIS F 7121 from wholesalers
    • Buy cheap Marine JIS seawater filter JIS F 7121 from wholesalers

    Marine JIS seawater filter JIS F 7121

    Ask Lasest Price
    Brand Name : Feiteng
    Certification : Inspection Report
    Model Number : A,AS,B,BS
    Price : Negotiable
    Delivery Time : The 3 day
    Payment Terms : Advance payment and delivery
    Supply Ability : 1000
    • Product Details
    • Company Profile

    Marine JIS seawater filter JIS F 7121

    Marine filter, suction sea water filter for ship, marine basket type sea water filter called: the sea water filter!
    The details are as follows:
    Sea water filter Jiangsu Feiteng ship matching Engineering Co. Ltd. production: seawater cooling system applicable to all types of ships and central fresh water cooling system, fire fighting system, ballast water / water systems. To adapt to the medium of sea water or fresh water.
    Design and manufacturing of products is based on the industry standard CB/T497-94, and combining the modern ship requirements, to improve the design and the formation of the company series product.
    The filter body, cover material is Q235-A or 1Cr18Ni9Ti, 316L and duplex stainless steel, the filter material is 1Cr18Ni9Ti or 316L and duplex stainless steel; filter flow area and filter nominal diameter (DN) area ratio of not less than 3; filter hot dipped zinc coating, the minimum weight 610g/m2. Or the filter surface coating treatment, coating layer thickness of 0.25 - 0.3mm, exterior surface of the primer and topcoat two degrees;
    ▲ marine filter CBM1061-82

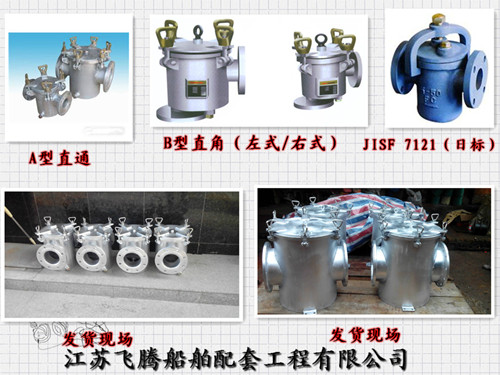

    Chinese Name: sea water filter forms: A type straight through seawater filter B type rectangular seawater filter
    English Name: sea water filter
    Definition: filter water impurities.
    ▲ marine suction sea water filter CB/T497-94
    Type: A type AS type B type BS type BR type BRS type
    The nominal pressure; PN0.1MPA
    Nominal diameter of DN40-DN500
    Applicable medium; sea water, fresh water
    Material: carbon steel valve body, valve cover:: carbon steel, stainless steel 304# thread;
    ▲ marine JIS seawater filter JIS F7121 filter with barrel shaped vessel
    The valve body; nodular cast iron / steel, stainless steel filter screen; 304#
    Nominal diameter of DN25-DN500;
    Type: A type straight through seawater filter B type rectangular seawater filter
    The nominal pressure; PN 5K 10K
    Applicable medium; seawater
    Ordering instructions: customer in order of time, need to explain the sea water filter body material, water filters filter materials.
    Filter type:
    A -- flange size according to direct water filter CB/T46;
    BR -- flange dimensions according to CB/T46 right angled seawater filter;
    BL -- flange dimensions according to CB/T46 left right seawater filter;
    AS -- flange size according to direct water filter GB2506;
    BRS -- flange dimensions according to GB2506 right angled seawater filter;
    BLS -- flange dimensions according to GB2506 left right seawater filter;
